Factory priced Electric Car Charger EV Charging Connector typeB 7kw For Agents

.

Feature

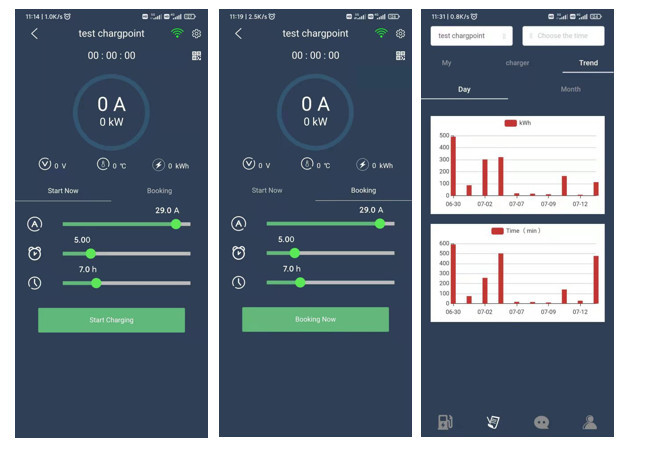

1. APP Control
* Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market

2. Load balance management:
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.

3. Specification
* Material: The front panel is tempered glass, which has the advantage of Anti- scratch and high-quality visual effects. The back cover is high quality plate metal with Special Integral molding, it is safe for indoor and outdoor applications.
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* 3 inch highlight LCD display: Shows live charging current, voltage, power consumption, time
* Versatile Installation wall mount or pedestal applications

Specification

Charging Connector/ plug type	IEC62196-2 /Type 2		SAEJ1772 /Type 1
AC Power input rating	1 phase 220V±15%	3 phase 380V±15%	AC Level 2 240V
AC Power Output Rating	3.5KW /16A	11KW /16A	3.5KW/16A
	7KW/32A	22KW/32A	7KW/32A
	N/A	43KW/63A	10KW.40A
Rated Frequency	50/60HZ
User interface & control
Charging control	Plug and charge √	RFID card √	CMS operate √
Display Screen	4.3inch LCD screen
Wifi connection	Support √	OCPP Protocol	1.6J √	2.0.1 √
Ethernet Interface	LAN(RJ-45) √	APP interface	Support √

Environmental
Storage Temperature	-40 ~ 75℃	Operating Temperature	-30 ~ 55℃
Operating Humidity	Up tp 95%, non-condensing	Altitude	≤2000m
Cooling Method	Natural Cooling
Protection
Over Voltage Protection	√	Under Voltage Protection	√
Over Load Protection	√	Short Circuit Protection	√
Earth Leakage Protection	√	Ground Protection	√
Over-temp Protection	√	Surge Protection	√
RCD	RCCB or Type B	Protection ratings	IP54 ( CE certified)
Wallbox Charger Mechanical
Dimension(H×W×D,mm)	410×260×164	Weight	1 phase :9kg 3 phase:12kg
Charging Cable Length	5m or 7.5m or customized	Enclosure Material	Front-panel: Tempered Glass, Back-cover: Plate Metal
LQM3T Mounting Pole(Optional)
Dimension(H×W×D,mm)	1400×200×100	Weight	＜8kg
Enclosure Material	Metal

FAQ

Q1: What is your terms of packing of EV Charging point?

A: We pack our EV Charging Point in cartons.

Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will
provide specific solutions for your requirements.

Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible

 Beijing Lekol Technology Co., LTD.

Lekol enables you to bring energy-efficient AC/DC EV charger designs to life, with our highly efficient components  and in-depth technical support. We cover power ranges from kilowatt to megawatt in our broad portfolioof high-quality power semiconductors, microcontrollers, gate drivers and security, and safety authentication solutions.

With the growing number of electric vehicles (EVs), which are in some markets  becoming viable alternatives to traditional internal combustion engine vehicles, the demand for enhanced semiconductor solutions for charging stations increases too. Curently, all eyes are on Chiona where EVs have gained traction in the rapidly expanding middle class, while Europe suit soon.

We concentrate on researching and developing innovative, sustainable and new technology to make our products more energy saving. Along with our standard products we als ooffer customization service upon the request in order to help our customers build their own local brands.

Lekol--An industry leading manufacturer of offers delivering sustainable value . Worldwide availability of our charging station and service offers is the best proof of our long-term engagement.

Lekol offers a complete solution for residentials commercial and public plug-in electric vehicle charging: the Lekol line of electric cehicle supply equipment and accessories . Our Lekol products are compliant with all industry standards and compatible with all major auto manufacturers' electric vehicles ( SAE J1772 TM compliant).
